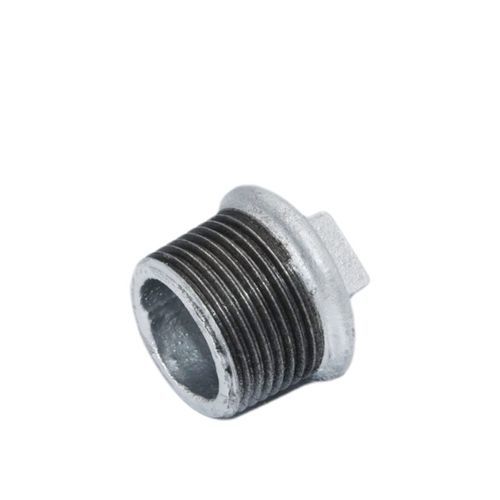

Round plug Fig.290threadedironcast iron
Add to favorites
Compare this product
Characteristics
- Form
- round
- Type
- threaded
- Material
- iron, cast iron, galvanized
- Function
- thread, work
- Product applications
- oil, pipe, internal thread, applications, for water, gas, bar
- Other characteristics
- pressure
- Diameter
Max.: 100 mm
(3.937 in)Min.: 8 mm
(0.315 in)- Operating temperature
200 °C
(392 °F)
Description
Cast Iron Pipe Fittings Galvanized Plug Beaded
Maximum Pressure: -
25 BAR (363PSI) (2.5MPA) CLASS 150
Tensile Strength: -
350MPA
Suitable Applications: -
Water, Oil, Gas, Petro-Chemical
Product Description
Do you know?
EN 10226 standard asks the thread truns of internal thread must be ±1 1/4 — ±1 1/2, Jianzhi keep the internal thread below ±1
Product Parameters
Standard: - EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: - EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures： - PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification： - UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Technical Data
Maximum Pressure: - 25 BAR (363PSI) (2.5MPA) CLASS 150
Tensile Strength: - 350MPA
Hardness: - HB150 (Brinell)
Elongation Rate: - 10%
Suitable Applications: - Water, Oil, Gas, Petro-Chemical
Material: - Malleable Iron
