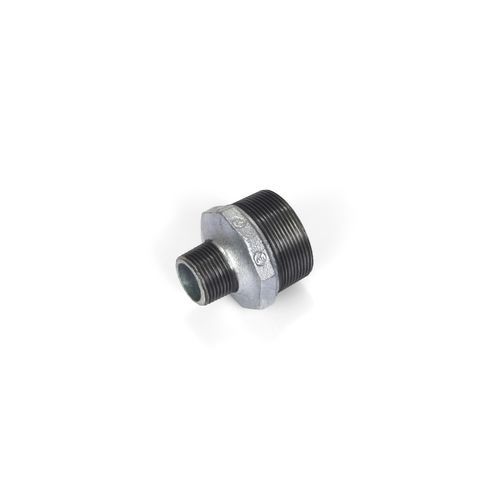

Hydraulic male-to-female reducer Fig.245reducingfor pipethreaded
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Applications
- reducing, for pipe
- Connector type
- threaded
- Material
- iron
- Diameter
Min.: 8 mm
(0.315 in)Max.: 80 mm
(3.15 in)
Description
Threaded Nipple Reducer
Maximum Pressure: -
25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: -
200°C (392°F)
Tensile Strength: -
350MPA
Suitable Applications: -
Water, Oil, Gas, Petro-Chemical
Product Description
Do you know?
BSPT(BS EN 10226) aks the Axes Angle lower ±0.5°, Jianzhi standard is lower ±0.3°
Product Parameters
Standard: - EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: - EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures： - PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification： - UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Technical Data
Maximum Pressure: - 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: - 200°C (392°F)
Tensile Strength: - 350MPA
Hardness: - HB150 (Brinell)
Elongation Rate: - 10%
Suitable Applications: - Water, Oil, Gas, Petro-Chemical
Material: - Malleable Iron
