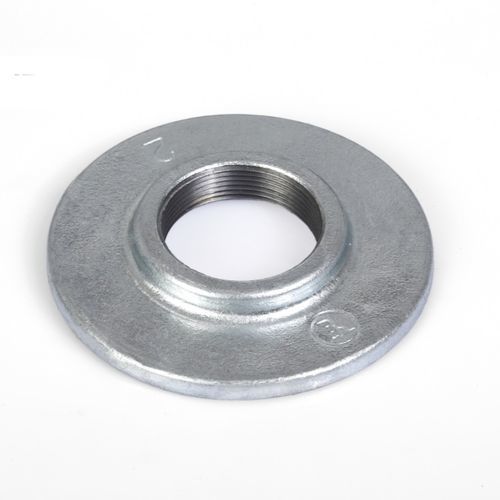

Pipe flange Fig.321carbon steelcast ironthreaded
Add to favorites
Compare this product
Characteristics
- Applications
- for pipe
- Material
- carbon steel, cast iron
- Other characteristics
- threaded, blind
- Nominal diameter
Min.: 15 mm
(0.59 in)Max.: 100 mm
(3.94 in)
Description
Galvanized Pipe Flange Blind Flange
Maximum Pressure: -
25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: -
200°C (392°F)
Tensile Strength: -
350MPA
Suitable Applications: -
Water, Oil, Gas, Petro-Chemical
Product Description
Flange connection is an important connection mode in pipeline construction. The flange connection is easy to use and can withstand greater pressure. In industrial pipelines, flange connections are widely used. 321 blind flange is without bolt hole ,malleable cast iron ,it is not carbon steel flange .
Product Parameters
Standard: - EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: - EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures： - PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification： - UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Technical Data
Maximum Pressure: - 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: - 200°C (392°F)
Tensile Strength: - 350MPA
Hardness: - HB150 (Brinell)
Elongation Rate: - 10%
Suitable Applications: - Water, Oil, Gas, Petro-Chemical
Material: - Malleable Iron
