Pipe flange Fig.329
cast ironthreadedfixed

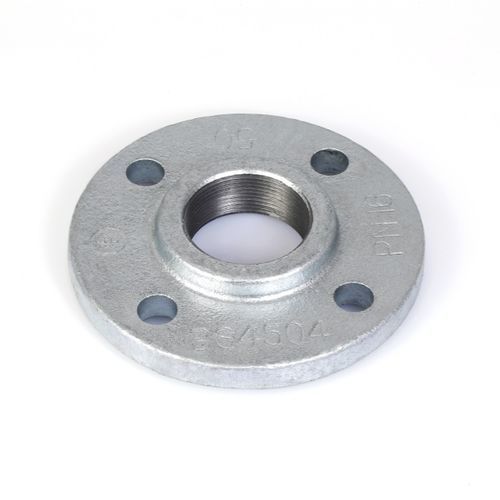

Pipe flange - Fig.329 - Hebei Jianzhi Casting Group Co., Ltd. - cast iron / threaded / fixed
Pipe flange - Fig.329 - Hebei Jianzhi Casting Group Co., Ltd. - cast iron / threaded / fixed
Pipe flange - Fig.329 - Hebei Jianzhi Casting Group Co., Ltd. - cast iron / threaded / fixed - image - 2
Pipe flange - Fig.329 - Hebei Jianzhi Casting Group Co., Ltd. - cast iron / threaded / fixed - image - 3
Pipe flange - Fig.329 - Hebei Jianzhi Casting Group Co., Ltd. - cast iron / threaded / fixed - image - 4
Add to favorites
Compare this product


Characteristics

Applications
for pipe
Material
cast iron
Other characteristics
threaded, fixed
Nominal diameter

Min.: 25 mm
(0.98 in)

Max.: 150 mm
(5.91 in)

Description

Stub End Flange With Bolt Hole Maximum Pressure: - 25 BAR (363PSI) (2.5MPA) CLASS 150 Maximum Temperature: - 200°C (392°F) Tensile Strength: - 350MPA Suitable Applications: - Water, Oil, Gas, Petro-Chemical Product Description Flange (flange) connection is the connection of two pipes, fittings or equipment, each fixed on a flange, between the two flanges, plus flange pads, fastened together with bolts, completed. 329 flange is with holes ,cast iron flange Product Parameters Standard: - EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242 Threaded Standard: - EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226 Work Pressures： - PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar Certification： - UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI Technical Data Maximum Pressure: - 25 BAR (363PSI) (2.5MPA) CLASS 150 Maximum Temperature: - 200°C (392°F) Tensile Strength: - 350MPA Hardness: - HB150 (Brinell) Elongation Rate: - 10% Suitable Applications: - Water, Oil, Gas, Petro-Chemical Material: - Malleable Iron
