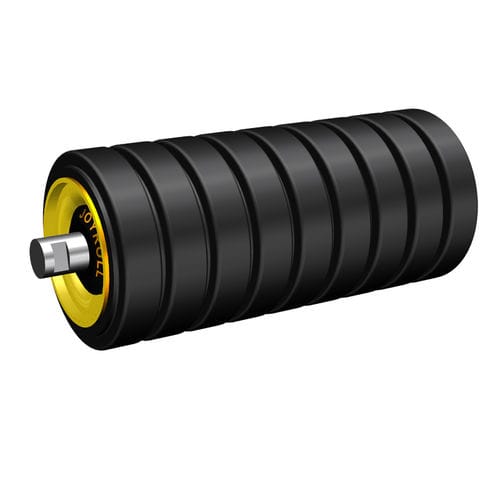

Slip-on conveyor roller
metalfor heavy loadsabrasion-resistant

Add to favorites

Compare this product

Characteristics

Drive mechanism

slip-on

Material

metal

Other characteristics

for heavy loads, abrasion-resistant, high-performance, low-noise level, shock absorbing, lube-free, durability, with steel ball bearing

Diameter

Max.: 219 mm
(9 in)

Min.: 89 mm
(4 in)

Length

Max.: 2,400 mm
(94.5 in)

Min.: 200 mm
(7.9 in)

Max. load capacity

Max.: 62 kN

Min.: 13 kN

Description

Impact roller is used in loading zone and transfer point applications. The rubber discs are assembled onto heavy duty steel roller, it can protect the belt where the lumps, weight or shape can cause damage to the belt cover from the free fall of material. SPECIFICATION: Roller Diameter: 89, 102, 108, 114, 127, 133, 140, 152, 159, 165, 178, 194, 219mm Roller Length: 100-2400mm. Shaft Diameter: 20, 25, 30, 35, 40, 45, 50mm Bearing type: 6204, 6205, 6305, 6206, 6306, 6307, 6308, 6309, 6310 Standard: DIN, CEMA, JIS, AS, SANS-SABS, GOST, AFNOR etc. FEATURES 1. Absorbs weight and shocks; 2. High loading capacity; 3. Highly-effective labyrinth seals protected from dust & water into the bearing; 4. Designed and manufactured for a long, trouble-free life; 5. Maintenance-free, high-quality sealed ball bearing. APPLICATION Mining Steel mill Cement plant Power plant Chemical Plant Sea Port Storage etc. CERTIFICATE ISO9001, CE
