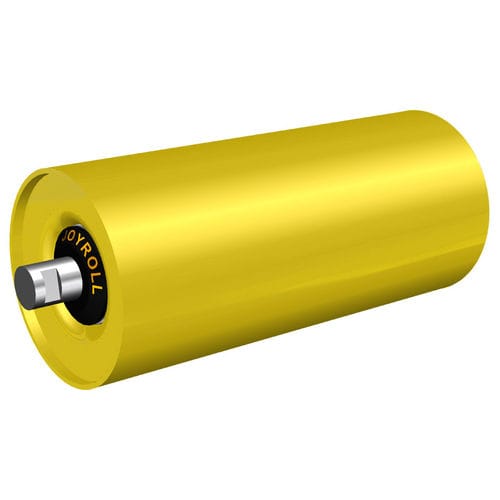

Slip-on conveyor roller
metalfor heavy loadsabrasion-resistant

Slip-on conveyor roller - Hebei Joyroll Conveyor Machinery Co., Ltd. - metal / for heavy loads / abrasion-resistant

Add to favorites

Compare this product

Characteristics

Drive mechanism

slip-on

Material

metal

Other characteristics

for heavy loads, abrasion-resistant, high-performance, low-noise level, shock absorbing, lube-free, durability, storage, with steel ball bearing

Diameter

Max.: 219 mm
(9 in)

Min.: 50 mm
(2 in)

Length

Max.: 2,400 mm
(94.5 in)

Min.: 100 mm
(3.9 in)

Max. load capacity

Max.: 62 kN

Min.: 13 kN

Description

Conveyor rollers are components of belt conveyor systems as they provide load support on carry side and return side. SPECIFICATION: Roller Diameter: 50, 60, 63.5, 76, 89, 102, 108, 114, 127, 133, 140, 152, 159, 165, 178, 194, 219mm Roller Length: 100-2400mm. Shaft Diameter: 20, 25, 30, 35, 40, 45, 50mm Bearing type: 6204, 6205, 6305, 6206, 6306, 6307, 6308, 6309, 6310 Surface Treatment: Electrostatic Powder Coating, Galvanization. Standard: DIN, CEMA, JIS, AS, SANS-SABS, GOST, AFNOR etc. FEATURES 1. Low Total Indicator Run-out (T.I.R), low rotational resistance; 2. Highly-effective labyrinth seals protected from dust & water into the bearing; 3. Designed and manufactured for a long, trouble-free life; 4. Maintenance-free, high-quality sealed ball bearing. APPLICATION Mining Steel mill Cement plant Power plant Chemical Plant Sea Port Storage etc. CERTIFICATE ISO9001, CE
