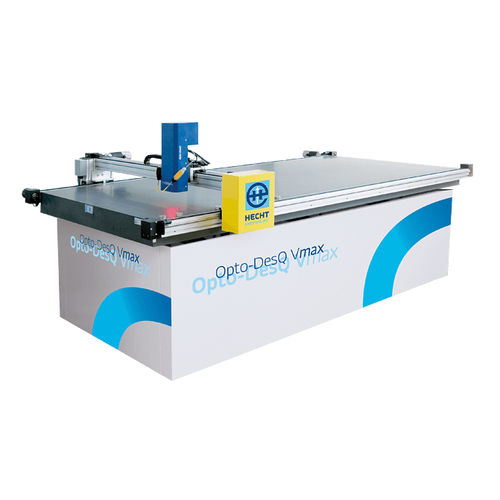

Thickness measuring system Opto-DesQ Vmax

diameterlengthgeometric

Fully automatic optical offline measuring stage Non-contact measurement and control of lengths, widths, angles, thicknesses, radii, ellipses, recesses, hole diameters, drilling, milling and grooving coordinates and horizontal bores. The Opto-DesQ Vmax is used for non-contact measurement of all geometric dimensions in industrial manufacturing. Optical quality control is an integral part of manufacturing and secures your processes. This measuring table is equipped with a camera system and special image recognition software, which provides highly accurate measuring results. It quickly detects whether a component is within the specified tolerance or not. Functions Opto-DesQ Vmax Measuring range: Xmax. = 2.750 mm / Ymax. = 1.250 mm / Zmax. = 85 mm Measurement program creation with HECHT Interface: Import of DXF files (2D, true to scale, no cuts). Import of machine files of a throughfeed drilling machine e.g. HOMAG, Biesse, Hüttenhölscher). Import from CAD/CAM software (postprocessor). Measurement result: Comparison of target/actual values taking into account tolerances with colored result display (OK / NOK). Clear error display in tabular form. Marking of the faulty positions in graphic display of the workpiece for easy fault localization. Connection HECHT Inline Borehole Control: Add-on software module to provide "number of holes" and "workpiece size" for the stand-alone system HECHT Inline Borehole Control.
