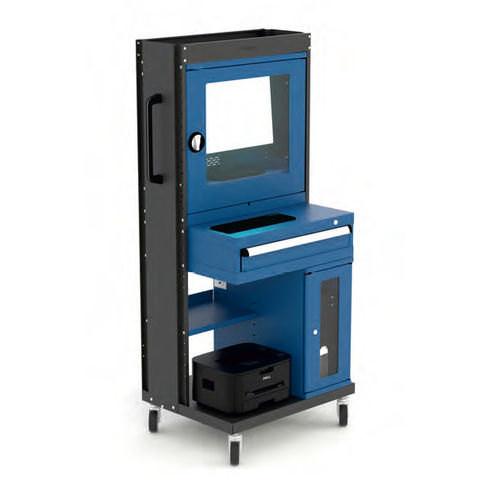

Data cabinet on casters 103 series

modular

Computer cabinet. Cabinet structure in 1mm thick sheet metal, resistance welded, painted in RAL 5010/7016 colour, oven dried before degreasing and phosphating. The structure on the sides, the total height of the cabinet, in sheet metal 1.5mm thick. These side panels make it possible to assemble a series of complements and elements which make up the whole cabinet. Door structure in 0.6mm thick sheet metal and 4mm thick methacrylate screen. The shape of the side edges of the door folded from the same sheet gives it rigidity without the need to weld reinforcements. On the upper part, the cabinet for the computer screen (width 300mm) or you have direct access to the electrical part located in the lower part. Drawer with front height 100mm, in 1mm thick sheet metal with telescopic slides of 100Kg. Work top made of 1mm thick sheet metal and fixed at a height of 1000mm. On the lower part, the CPU cabinet (300x600x600) with 0.6mm thick sheet metal door structure and 4mm thick methacrylate screen. The small adjustable tray allows the lower part of the cabinet to be divided into two departments with different combinations. Supplied with 4 wheels 100 mm diameter, swivelling and two with brakes. The cabinet has two side handles for better mobility. Electrical kit consisting of a 220V socket, a fan, data and a magnetothermal included in the lower part of the cabinet. (Various options see our catalogue)
