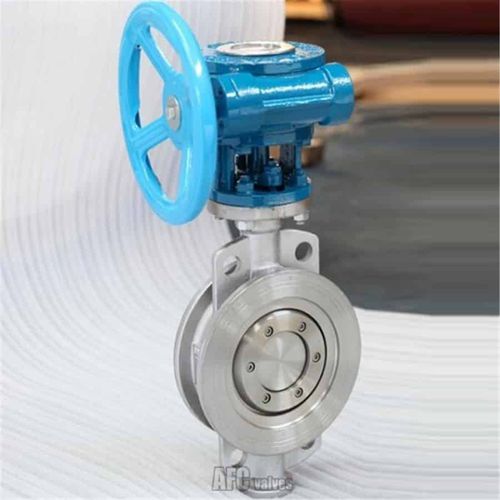

Butterfly valve Monel

with handwheelfor controlfor chemical products

Monel valves have great demand, wide application and excellent comprehensive performance, especially have excellent corrosion resistance in high temperature hydrogen fluoride and hydrofluoric acid solution, and resistant to any density of hydrofluoric acid solution corrosion. AFC Monel valves serve many different applications in these industries: • Chemical • Oil & Gas • Pharmaceutical • Nuclear Power • Marine • Petrochemical • Oil Refining • Sea Water Characteristics 1. AFC butterfly valve is characterized by simple structure, small volume and light weight, and it is easy to install and adjust. The valve is widely used in the medium and low pressure pipeline. 2. Good sealing performance，corrosion resistance， high pressure and temperature resistance, smart control and safe use. 3. The unique design of triple eccentricity makes no friction between the sealing surface and extend the valve service life. 4. The elastic seal is produced by the torque. 5. The wedge design makes the valve close more and more tightly by automatic sealing function, and there’s compensation and zero leakage between the sealing surfaces. Technical Specification Design Standard: API, ASME, EN, ISO, JIS, DIN, BS, GB Connection type: Flange, Wafer, Lug Pressure range: 150LB-300LB, 1.0MPa -4.0MPa Size range: NPS 3″ -48″ , DNS8O~DN1200 D rive: Lever, Gear, Electric, Pneumatic actuator
