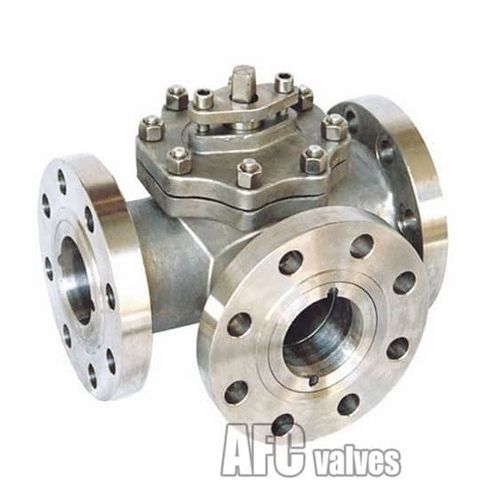

Ball valve

leverelectrically-actuatedfor oil

There are two type of 3 way ball valve, L type and T type. The L-shaped three-way ball valve is used to switch the flow direction of the medium and can connect two channels that are perpendicular to each other. The T-shaped three-way ball valve is used for medium flow , Merge and flow direction switching. The T-shaped tee can connect three channels to each other or two of them. The three-way titanium ball valve generally uses a two-seat structure, and a four-seat structure can also be used according to user requirements. AFC Titanium alloy valves serve many different applications in these industries: • Chemical • Oil & Gas • Geothermal • Desalination • Solar Power • Petrochemical • Pharmaceutical • Sea Water • LNG (Liquefied Natural Gas) Characteristics Titanium valve is light in weight and high in mechanical Strength. Titanium valve can resist a variety of corrosive media erosion, corrosion resistance in the civil industrial pipeline, can solve the stainless steel, copper or aluminum material, valve corrosion problems difficult to solve. The utility model has the advantages of safety, reliability, long service life etc. Technical Specification Design Standard: API, ASME, EN, ISO, JIS, DIN, BS, GB Connection type: Flange, Wafer, SW, NPT, BW Pressure range: 150LB-1500LB, 1.0MPa -25.0MPa Size range: NPS 2″ -32″ , DNS 5O~DN 800 D rive: Lever, Gear, Electric, Pneumatic actuator Design Feature – Resilient seat/Metal to metal seat – Blow-out proof stem : Fire safe, Anti-static design – Grease injection for seat & stem – Optional lockable device – ISO 5211 mounting pad – Full Bore or Reduced Bore – Double block and bleed function – Cavity pressure self-relief
