Ball valve Inconel 625

electricpneumatichydraulic

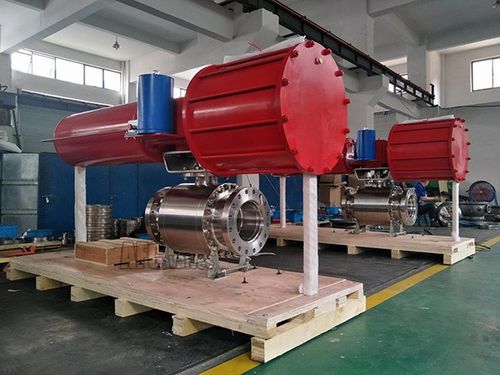

Inconel 625 Trunnion Mounted Ball Valve With Pneumatic Actuator The smallest the fluid resistances among all valves even reduced-bore ball valves have relatively small fluid resistance. It also has good sealing performance and stem seal is reliable. When the ball valve is opened and closed, the valve stem only rotates 90 °, so the packing seal of the valve stem is not easy to be broken, and the sealing force of the valve stem reverse seal increases as the medium pressure increases. The Inconel ball valve only opens and closes by 90 °, so it is easy to realize automatic control and remote control. The ball valve can be equipped with electric, pneumatic and hydraulic actuator. AFC lnconel valves serve many different applications in these industries: • Chemical process • Oil & Gas • Mining • Petrochemical • Metallurgy • Oil Refining Inconel 600/625 (Inconel Valve) Inconel is family of austenitic nickel-chromium-based superalloys. Inconel alloys are oxidation and corrosion resistant materials well suited for service in extreme environments. Different inconels have widely varying compositions, but all are predominantly nickel, with chromium as the second element, good resistance to stress corrosion in high concentration chloride solution. Technical Specification Cast Trunnion Ball Valve are manufactured to the latest edition of API Standard 6D and tested to API Standard 598. Applicable Standards: – Ball Valve design according to API6D, BS5351, ASME B16.34 – Face to Face ASME B16.10, API6D – End Flanged ASME B16.5/ASME B16.47 – Butt Welded ends ASME B16.25
