Floating ball valve DBB

hydraulicbleedpetroleum

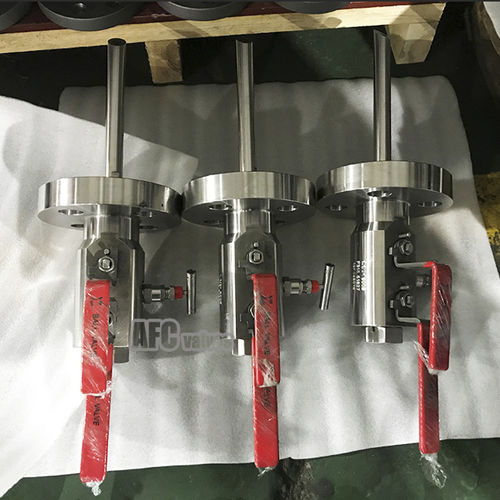

Floating DBB Valve AFC Double block and bleed ball valves (DBB valve) are widely used in power, petrochemical, metallurgical, marine, petroleum, natural gas, gas, pharmaceutical and other industries in the hydraulic system pipeline. D.B.B Ball valve is made of two balls and two seats and one needle valve, bottom of body have drain valve. Using Forging material , one piece, two piece, three piece structure. DBB ball valve can sampling , save installation time and purchase cost .not easy to leak. Features – Design&Manufacture:API6D – Face to Face Dimension: ASME B16.10 – Flange Ends Dimension: ASME B16.5 – Test &Inspection: API598 Specification – Full bore design – Bolt Bonnet Split body – Floating type ball – Blow out proof stem Specifications Fire safe construction Anti-static device Size: 1/2″-2″ Pressure:150-2500lb Temperature:-29+545°C Main Material Cast Carbon Steel, Stainless Steel, Duplex or Other Special alloy material like titanium, Hastelloy, Inconel, monel, alloy 20 etc.
