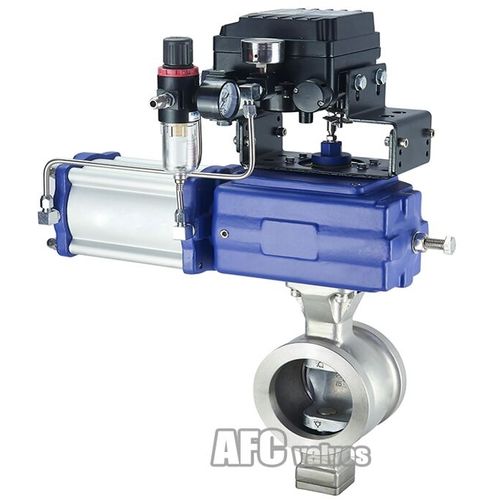

Ball valve

manualflow controlfor gas

Wafer Segment Ball Valve Segment Ball Valve (Wafer Segment Ball Valve) is a throttling control segmented ball valve that provides high flow capacity with optimum characteristics for industrial markets including Pulp and Paper, Refinery, Chemical, and Petrochemical Industries. AFC V-Port Segmented Ball Valve Applications: ● Slurry and Viscous Fluid ● Powder and Particles in Fluid ● Chips and Fibers in Pulp and Paper Process ● Flow Control ● Pressure Control ● Steam, Gas and Liquid AFC Segment Ball Valve is primarily designed for flow control, and it can also be used for shut-off operation. The notched port on the segment ball contributes to strong shear stress to cut through media with fibers and particles. Consequently, this Segment Ball Valve is a good general control valve (equal percentage flow character) for most pulp and paper process applications, or similar flow contains fibers and particles. Features 1. Body: a) Integral body design offers greater rigidity against fluctuating pipe loads. b) Eliminates the leak path associated with two piece body designs. c) Both wafer and flange connection are available.
