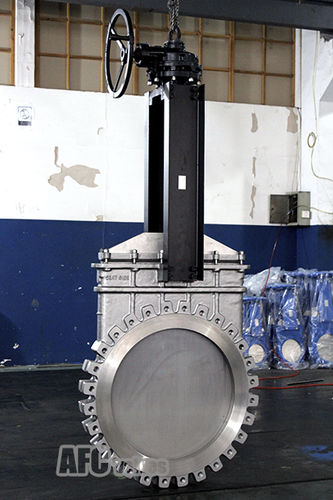

Knife gate valve

electricpneumatichydraulic

Unidirectional Knife Gate Valve AFC knife gate valves, are designed for convenient, unrestrictive control over pipeline flow. Specifically made for industrial use, size range from DN50-DN1800 in one piece casting body. A broad body and trim materials are selected and fabricated to suitable for various service conditions. General Applications​ • Mining • Pulp and paper • Water Treatment Plants • Food and Beverage • Bulking Handling • Power Plant​ • Chemical​ Plants Description STANDARDS COMPLIANCE: ◆MSS SP-81◆ASME B16.10◆ASME B16.5◆ASME B16.47◆ASME B16.34 ◆AS2129 T/Dor T/E◆BS 4504 T/Dor T/E◆MSS SP-55◆EN 1092 》Optional top flanges to ISO 5211 》Qualified for both gaseous and liquid services 》Broad line of body and trim materials for a variety of medium service. 》MSS SP-81 》Uni- or Bi-direction 》Materials: Cast lron, Ductile Iron, Carbon Steel, Stainless Steel, Alloy Steel, Duplex steel 》Pressure Ratings: ANSI 150#, PN10, PN16 》Size Ranges: DN50-DN1800 mm (Larger sizes upon request) 》Without Bolted Bonnet 》Ends Connections: Lugged 》Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic
