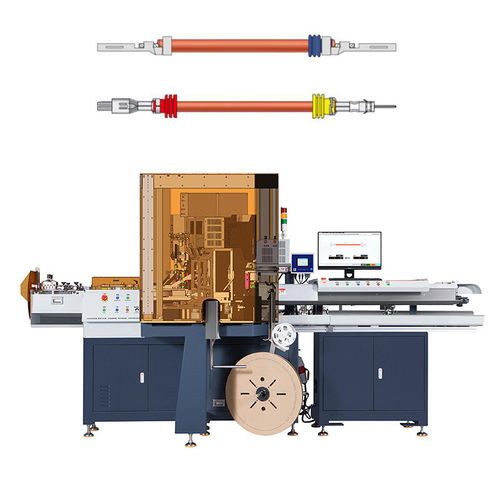

Wire crimping machine JWD-TG5F

for cable terminalsautomatichigh-capacity

Automatic Two Ends Universal Wire Terminal Crimping Machine JWD-TG5F is able to finish wire cutting , single end / double ends half stripping, full stripping and crimping. With the optional, this JWD-TG5F can also handle wire rubber seals assembly, printing and inserting cable number tubes and heat shrinkable tubing. Automatic two ends universal wire terminal crimping machine can crimp wire one end or two end, inserting waterproof seals, wearing number plate and more. JWD-TG5F have many optionals that will meet your cable wire processing requirements. With high precision and great stable working performance, the capacity of this fully automatic wire terminal crimping machine can be up to 1000~5200 pcs/hourpcs/h, that is really save the labor cost and lover NGs. • Function : One-side or two-sides terminal crimping • Wire diameter : AWG6-AWG10 (0.13-6.0sqmm) • Max processing capability : 1000~5200 pcs/hour • Custom made : √ • Wire feeding speed : 8-12m/s • Stripping length : 0.1-16mm • Cutting tolerance : ≤1000mm, +1mm,≥ 1000mm, (1000mm+0.2%xL) • Cutting length : 50-9999mm • Crimping stroke : 30mm (40mm Optional) • Environment Temprature : 0-40°C • Air pressure : 0.5-0.7MPa • Air consumption 3m/h • Machine dimension : L3720mmxW1450mmx H2010mm • Application : Automatic Two Ends Universal Wire Terminal Crimping Machine JWD-TG5F is able to finish wire cutting , single end / double ends half stripping, full stripping and crimping. With the optional, this JWD-TG5F can also handle wire rubber seals assembly, printing and inserting cable number tubes and heat shrinkable tubing.
