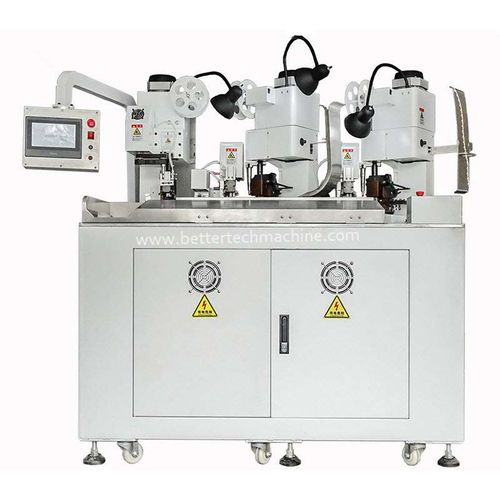

Automatic Three Ends Two Wires Combined Terminal Crimping Machine works fully automatic. It is able to cut and strip 2 guage cables/wires at the same time, Splicing 2 cable/wires into one terminal and crimping different wireterminals for the both cable ends.
As a fully automatic both side terminal crimping machine,JWD-TN3 can finish Wire cutting, wire stripping, crimping one terminal onto 2 wires and crimping terminal on the other side of the each wire
• Machine : Automatic Three Ends Two Wires Combined Terminal Crimping Machine
• Function : Wire cutting, wire stripping, crimping one terminal onto 2 wires and crimping terminal on the other side of the each wire
• Wire range : 16AWG~ 28AWG electric wire
• Max processing capability : 3000pcs/hour(wire length‹300mm)
• Processing length : 50~9900MM
• Stripping length : 0.1mm~15mm
• Cutting tolerance : 0.002×total length
• Stroke : 30mm (Optional: 40mm)
• Crimping mould : OTP mould(Optional: flag mould, europe mould)
• Air pressure : 0.4~0.6Mpa(clean & dry air )
• Machine dimension : 1430mm×800mm×1650mm L×W×H
• Application : Wire harness assembly
