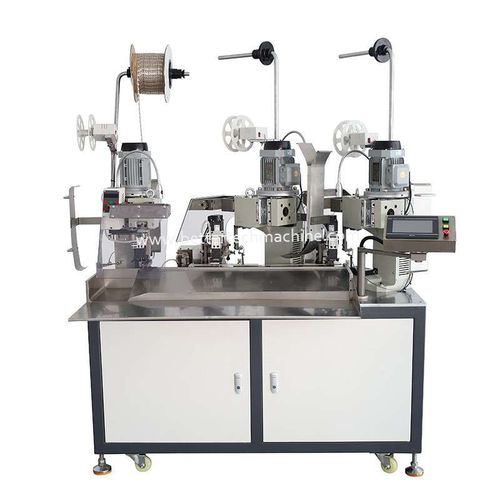

Cable terminal crimping machine JWD-THYI403

cablefully-automatic

High performance wire crimping machine that can press three side terminal onto the double wire. It runs fully automatically and is with high output, when the cable length equa 100mm, the output of this wire crimping machine can be upto 2600 pieces per hour. • This three-sided fully automatic wire crimping machine, with multi features, such as wire cutting, wire stripping, and crimping terminals. Which make this fully automated wire crimping special is that can crimp 2 wires on side A to 1 terminal and crimp 2 terminals to 2 wire on side B. • It can crimp all kinds of cross-feed terminals, straight-feed terminals, flag-shaped terminals. • Support customization: stripping length on request • Function : Wire cutting, wire stripping, crimping one terminal onto 2 wires and crimping terminal on the other side of the each wire • Wire range : AWG#24~ AWG#16 • Max processing capability : 2600 pcs/hour（wire length=100mm） • Stripping length : 0.1mm~14mm • Cutting tolerance : 0.002×total length • The unstripped cable jacket length : 45~99999MM • Detection system : Check whether there is a terminal, in the wire, crimping the terminal • Auxiliary device : Terminal chain rewinding device • Machine dimension : 1450mm×730mm×1600mm L×W×H • Application : Wire harness assembly
