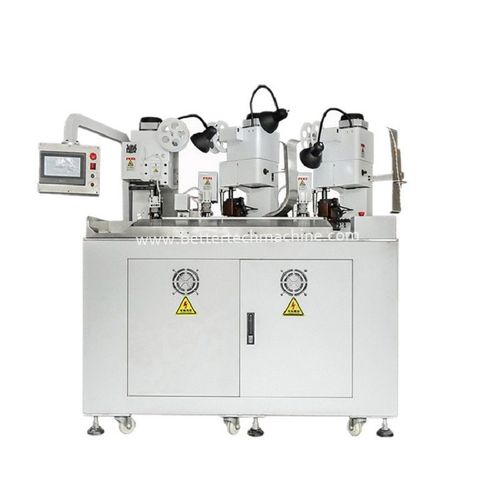

Wire crimping machine JWD-TN4

for cable terminalsfully-automaticcompact

Fully automated four wires crimping machine can crimp up to 5 terminals on each end of the harness. Depending on your product requirements, different types of terminals can be used for the crimp. • Machine : Fully Automatic Four Wires Combined Terminal Crimping Machine • Function : Wire cutting, wire stripping, 4 wire splicing and 5 ends terminal crimping • Terminals types : Joint terminals • Max processing capability : 3200pcs/hour • Customization service : √ • Stripping length : 10mm≤X≤30mm • Wire size range : AWG28~AWG18 • Wire length : ≥60mm • Cutting tolerance : 0.002×total length • Working pressure : 0.4~0.6Mpa(clean & dry air ) • Machine dimension : L1500mm×W800mm×H1600mm • Application : wire combined splicing, terminal crimping(OTP horizontal mold, vertical mold)
