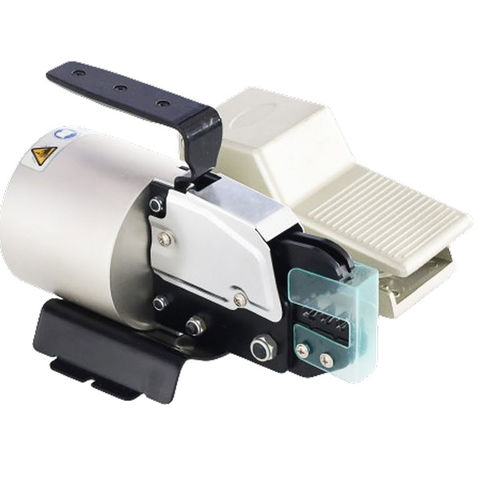

Pneumatic crimping tool JWD-5ND

for cable lugsfor wireswith interchangeable dies

Pneumatic terminal crimping tool can change crimping die and easy to operate, is suitable for various wire terminals. • Terminal crimper 5ND equips is driven by cylinder that ensure the crimping effect is high-precision. • This trminal crimping tool can crimp a variety of terminal by changing the different crimping die. • Only 2kg weight and controlled by foot switch, easy to operate, the terminal crimper is a real portable equipment for user. • Crimping area range: 0.08-6mm². • Working speed is up to 1200pcs/h • Crimping force : 1.3T • Air pressure : 0.5~0.6Mpa • Air mass flow : 34L/min • Dimension : L230mm×W187mm×H100mm • Weight : 2kg terminal crimping tool, tubular terminal crimping tool, ring terminal crimping tool, pre-insulated terminal crimper
