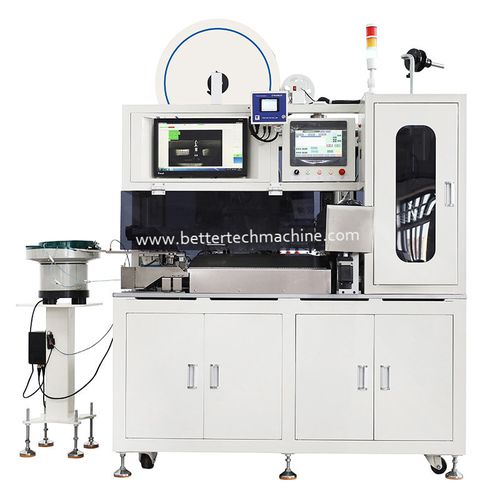

Connector crimping machine JWD-TCT1

for wirescablefully-automatic

Wire Single End Crimping Housing Inserting & Tinning Machine The fully automatic multifunction terminal crimping machine is able to process wire cutting, two ends peeling, single end terminal crimping, single end tinning and housing inserting, this multifunction crimper is suitable for wire and cables processing industries. • This fully automatic termianl crimping and housing inserting machine works efficiently and it is real multifunction, is able to finish cutting, stripping, tinning, crimping, and housing inserting smoothly. • Cutting length: 40-2000mm • Stripping length: 0.5-10mm, • Applicable wire sizes: 0.8-2.0mm (28#-20#) • Function : stripping, crimping, cutting, tinning, housing inserting • Wire Dia. range : AWG28#-20#(Dia.0.8mm-2.0mm) • Air pressure : 0.5-0.7Mpa • Custom made : √ • Stripping length : 0.5-10mm • Cutting length : 40-2000mm • Intermediate wire jacket length min. : 25mm • Detection device : Check whether the wire/ cable is plugged into the terminal • Auxiliary device : prefeeder device. Terminal paper rewinding device. • Machine dimension : L1500mm×W1200mm×H1650mm
