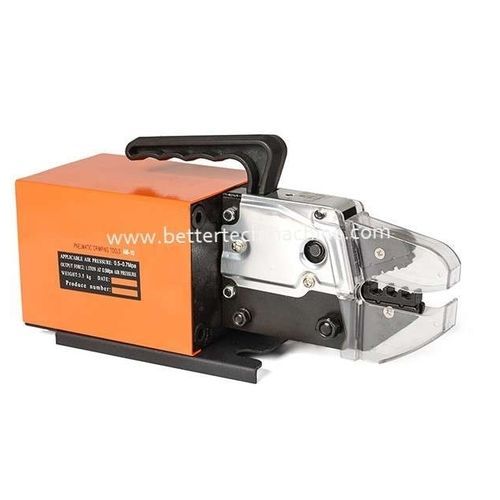

Pneumatic crimping tool AM-10for cable lugs
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Applications
- for cable lugs
- Crimp profile
Min.: 6 mm²
(0.009 in²)Max.: 35 mm²
(0.054 in²)
Description
This terminal crimper is designed for crimping insulated terminals, non-insulated terminal and End-sleeves ferrules.
• Air pressure:0.4 ~ 1Mpa
• Function : c
rimp terminals:Insulated terminals : up to 6 mm²
Non-insulated terminal : up to 16mm²
End-sleeves ferrules: up to 35mm²
• Crimping force : 13.5KN
• Air pressure : 0.4-1Mpa
• Custom made : √
• Supply voltage : 220V 50/60HZ
• Machine weight : 6kg
• Machine dimension : L260mm×W120mm×H140mm
• Die types : insulated O/Y type terminal, Non-insulated O/Y type terminal, Twin ferrules terminal,Ferrules terminal, rectangular connector pin, Males or females receptacles terminal,
