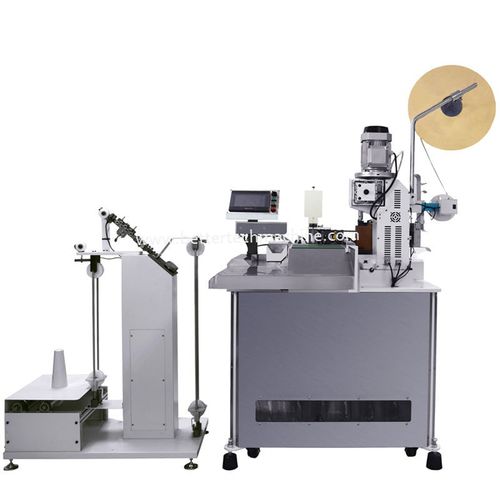

Tinning machine JWD-TC4-331

• Full automatic terminal machine with high precision that release labor cost. • Changing stripping length, cutting length, terminal end soldering position and tinning time freely by Touch screen. • Max processing amount : 3450pcs/hour. • NG products can be detected. • Wire line Dia. : AWG32-AWG14# • Wire types : AV，AVS，AVSS，CAVUS，KVKIV，UL • Max processing capability : 3450pcs/hour • Custom made : √ • Cutting length : 30-9999mm • Cutting tolerance : 0.2mm+0.00005×Lmm • Stripping length : F: Crimping 0-10mm R: Soldering 0-15mm • Soldering length : R: Soldering 0-15mm • Crimping capacity : 2T • Soldering bolume : Tinning Ø 1-1.6mm • Soldering temperature : 20-400℃ • Power supply : 3 phase 220V±10% 50/60HZ • Machine weight : 450kg • Machine dimension : L1100mm×W920mm×H1600mm • Feeding rack : L930mm×W500mm×H120mm • Application : Terminal end hitting, crimping, and tinning
