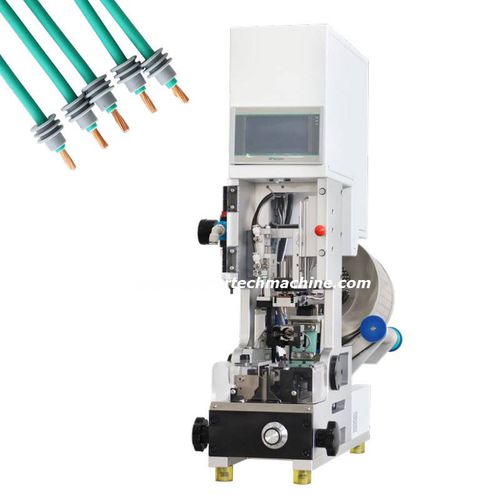

Connector assembly machine JWD-C4400FS

manualwire harnessfor automotive applications

Wire seal insertion solution for common gauge wire harness, this wire connector rubber seal assembly machine can be used as a station in automotive wire harness processing line. • Automotive waterproof rubber seal assembly machine simplifies your labor structure and fits most diameters of automotive wire harnesses. The machine JWD-C4400FS automatically loads the waterproof plugs and inserts the rubber seals into the wires quickly and accurately. The rubber seal assembly machine increases productivity compared to traditional manual assembly. Rugged construction ensures durability and longevity. • We offer a user-friendly design. Simple operating steps make it easy for operators to learn and use the machine. The waterproof plug assembly machine is equipped with an emergency stop button and protective cover, we value the safety of our users above all else. • Capacity : 60 times/min • Rubber seal size : Max: 13x14mm (outer diameter x length) • Air source : 0.5-0.6MPa • Adjustment amount : 10mm • Motor Power : 24V DC 50W • Power supply : 220V 50Hz • Weight : 36kg • Dimension : 200mm×600mm×630mm
