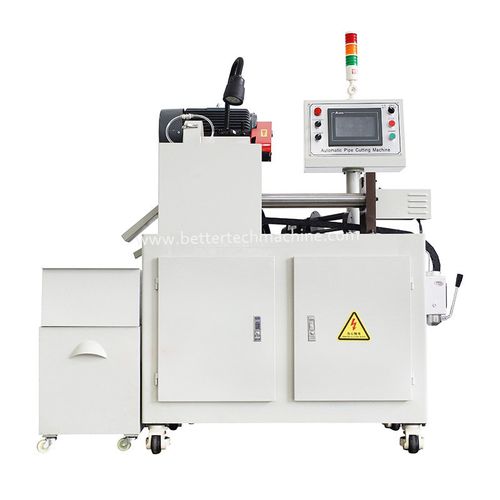

Metal pipe cutting machine JWD-pb9500Abladefor aluminumfor brass
Add to favorites
Compare this product
Characteristics
- Technology
- blade
- Material
- for aluminum, for brass
- Product handled
- for metal pipes
- Other characteristics
- automatic, kerf
- Overall length
1,400 mm
(55 in)- Overall width
750 mm
(30 in)- Height
1,650 mm
(65 in)- Weight
450 kg
(992.08 lb)- Power supply
220 V, 380 V, 415 V
Description
Aluminum Rod Brass Pipe Cutting Machine
• Control system : PLC
• Power : 2200W
• Servo motor accuracy : 0.001mm
• Stroke range : 480mm
• Cutting material : Copper/Aluminum pipe
• Cutting Dia. : ∅0.6mm-∅6mm
• Cutting tolerance : ±0.05mm
• Perpendicularity : ±0.02mm
• Cut surface : no burr
• Exchange die time : 0.3-1min
• Tungsten steel saw blade :
∅180mm×0.8mm×160T
∅150mm×0.5mm×200T
• kerf width : 0.5mm/0.8mm
