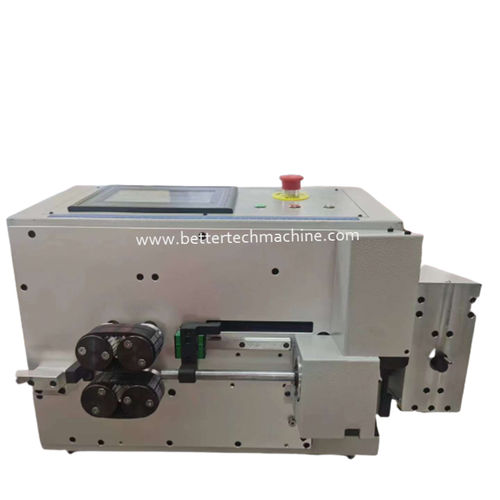

Automatic stripping and bending machine JWD-WBF73D
cablewire

automatic stripping and bending machine
automatic stripping and bending machine
automatic stripping and bending machine
automatic stripping and bending machine
automatic stripping and bending machine
Add to favorites
Compare this product


Characteristics

Product to be stripped
cable, wire
Other characteristics
automatic

Description

The cable cut strip and 3d bend machine is mainly suitable for 2~6sqmm wire harness processing of energy vehicle, new energy cable, electrical appliances, toys, automobile fittings, and other industries. • This is a high-performance cable wire cutting stripping and bending machine for wire harness processing, maximum front stripping length is 35mm, maximum tail ends stripping length is 30mm, It can bend the cable at three dimension. • Applicable cable cross section area: 2~6sqmm². • The JWD-WBF73D can bend the cable up to 10 times on one product. • The cable cut strip and 3d bend machine is mainly suitable for wire harness processing of energy vehicle, new energy cable, electrical appliances, toys, automobile fittings, and other industries. • Output : 300~600pcs • Function : Wire cutting, stripping, and 3d bending • Display : 7inch touch screen • Cable cross section area : 2~6 mm² • Conduit diameter : Customization • Cutting length : 1-100,000mm • Cutting tolerance : ± (0.002xcutting length)mm • Stripping length : Front stripping length 35mm, tail ends stripping length 30mm • Bending count : 10 • Bending angle : The Angle is adjustable,Three dimensional bending • Power : 180W~600W • Power supply : AC 175V~220V 50/60Hz • Dimension : 630mm×560mm×430mm • Machine Weight : 60kg
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
