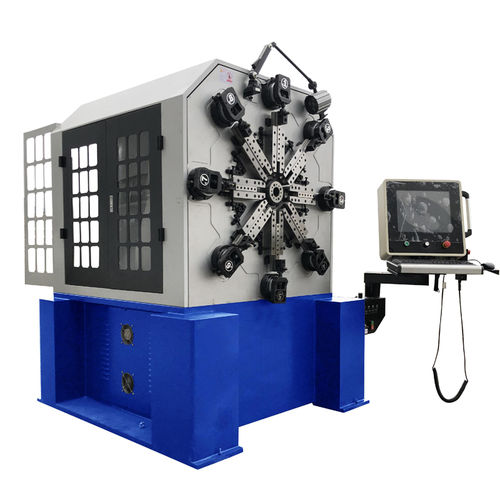

Coiling spring machine JWD-WBC2-1240
for CNC machines

coiling spring machine
coiling spring machine
coiling spring machine
coiling spring machine
Add to favorites
Compare this product


Characteristics

Specifications
coiling, for CNC machines

Description

The automatic CNC spring machine can produce wire coiling products, shaped springs, compression springs, double torsion springs, battery springs, flat springs, and clockwork springs. Normally it suits wires with ∅1.0-4.0mm • CNC spring machine is suitable for wire diameter range ∅1.0-4.0mm • This automatic spring machine coils wires at high speed, abandoning huge cam and rocker design, • Multiple sets of servo motor independent control system with individual servo drive at each station. • Coiling device with detachable mounting function for quick handling of bending corners and round bending. • The function of the wire turning system solves the problem that the whole wire feeding process of the spring machine can be rotated 360 degrees in forward and reverse directions, which can realize your multiple demands of forming and cutting at multiple angles. • The spring machine is equipped with precision detection tracking devices, which can produce shaped springs, compression springs, double torsion springs, battery springs, and flat springs (clockwork springs). • Input voltage : 380V±10% 50Hz • Wire Dia. : 1-4MM • Custom made : √ • Axis : 12 axis • Max length of feeding : 10000mm • Min length of feeding : 0.01mm • Max feeding speed : 100m/min • Feeding servo motor power : 5500W • Cam servomotor power : 1200W • Rotating line power : 1200W • Coiling servomotor power : 1000W • Machine weight : 3500kg • Air pressure system : Air pressure 5- 6kg/cm • Probe 3 pieces • Feeding rack : L1100mm×W1200mm×H670mm • Feeding rack weight : 120KG • Application : Special-shaped spring or coiling wire parts
