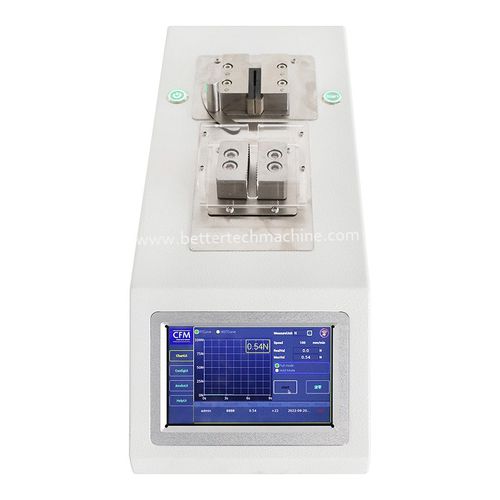

Crimp tester JWD-WT1

tensile strengthwire harnessindustrial

Intelligent wire harness tensile testing machine one can automatically returns to the starting position and the peak force remains on the display, when the test is completed, • System setting: It is convenient to set system parameters such as test upper and lower limits, calibration, and pull-off conditions. • Force limit: When the test force value exceeds the set upper and lower limits, it will automatically determine NG. • Quick conversion between Kg, N and LB units • Communication connection: USB data exchange returns text data or imports into MES system(Daoxun Protocol is open). • Data display: real-time tension and peak tension can be displayed at the same time. • Data processing: The test data can be recorded, transmitted and cleared, which is convenient for data processing. • Host computer: computer software • Terminal height test: height gauge can be connected • Function : Testing wire tension and terminal crimping force. The clamp terminal is tooth-shaped, automatically tightened, and the clamp is automatically clamped. • Measuring range : 0-1000N • Stoke max. : 48mm • Traction speed : 25/50/100 mm/min (depend on the users) • Testing accuracy : 0.05% • Resolution : 0.01 N • Interface : USB host, USB device • Voltage : 20V • Machine weight : 10.5kg • Dimension : L404mm x W154mm x H420mm
