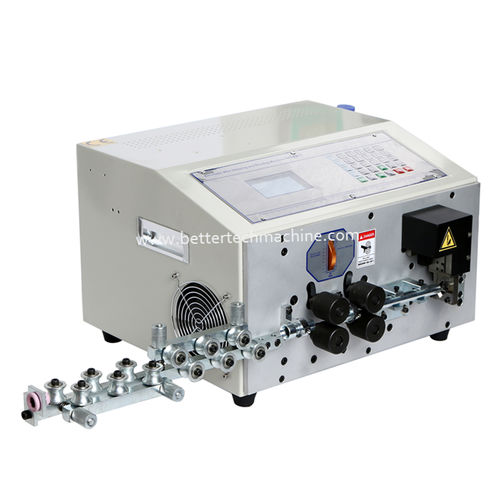

Wire stripping and bending machine JWD-WBD416
cableautomatic

wire stripping and bending machine
wire stripping and bending machine
Add to favorites
Compare this product


Characteristics

Product to be stripped
cable, wire
Other characteristics
automatic

Description

The automatic electrical wire bending machine JWDWBD416 can strip the cable sheath of two ends of the wire and bend it to the angle in your design drawing. This machine is able to finish cutting, stripping and bending steps on wires (max. wire section area 16mm² ). • Applicable cable wire section area: 1-16mm². • Smoothly finish cutting stripping and bending steps on one machine. • This is a high-performance wire cutting stripping and bending machine for processing a wide range of wires and cables, it has an affordable price and perfect working performance. it can bend angle 30°, 45°, 60°, 90° and more. • The machine is mainly suitable for wire harness processing of electronics, new energy cable, electrical appliances, toys, automobile fittings, and other industries. • Output : Max 3000pcs/h(L=100mm) • Conductor Section area : 1-16 mm² • Blade material : High speed steel • Conduit diameter : Standard machine ⌀ 10mm, Other conduit diameters can make customization • Function : Wire cutting stripping bending • Cutting length : 1-100,000mm • Cutting tolerance : ± (0.001xL)mm • Stripping length : 0.1-20mm • Bending angle : 30 degree 45 degree 60 degree 90 degree • Power : 650W • Power supply : 110V/220V AC 50/60Hz
