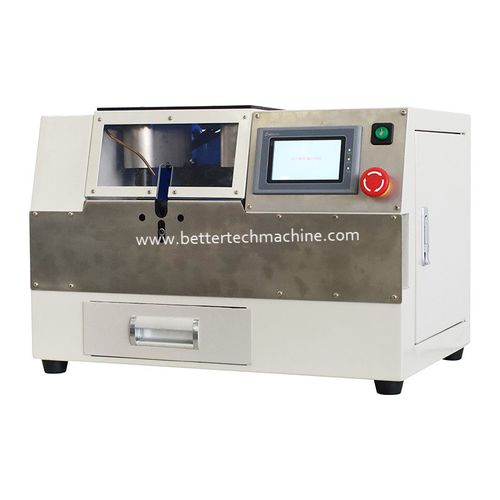

Wire braiding machine JWD-BH31

Brush shear braiding machine is widly applied for cuting brushing and floding for braiding cable (shield cable, signal transmission line, data cable) (diameter 3.0-9mm) shielding braid layer • The brush shear braiding machine, model JWD-BH31, is an automatic cable sheild layer processing machine that breaks up the braided layer of shielded cable (data cable) (diameter 3.0-9mm) and cuts it to length. It is suitable for processing mobile phone fast charging data cable, shielded network cable and signal transmission cable. • The machine JWD-BH31 firstly the shielding layer of the cable is brushed apart, then the shielding layer is turned back and finally cut off with a cutter. The braided shield is brushed and turned back to retain 3mm length at least, with the braided layer being turned back to retain a common length of 3mm, 5mm, 6mm and 8mm. • The metal brushes can be brushed in both forward and reverse directions and the speed can be adjusted. The brush cutter is made of imported steel to ensure excellent clean cut with no debris. • The digital HD touch screen control, with its own protection, is easy to operate. • Brush shear braiding machine JWD-BH31 is controlled by a foot switch and has a special receptacle for the waste material to avoid splashing, which is environmentally friendly and tidy, and the machine is quiet.
