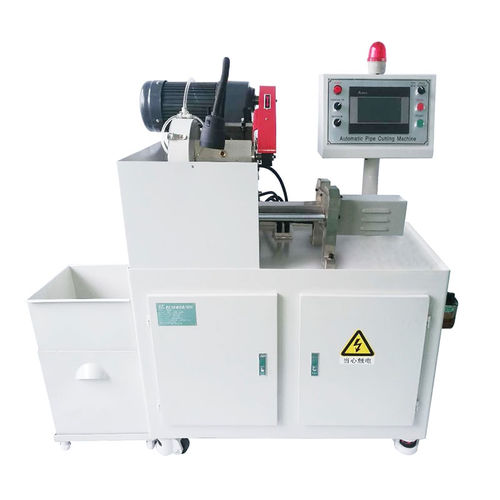

Metal pipe cutting machine JWD-PB9300Fbladefor aluminumfor copper
Add to favorites
Compare this product
Characteristics
- Technology
- blade
- Material
- for aluminum, for copper
- Product handled
- for metal pipes
- Control type
- PLC-controlled
- Applications
- for industrial applications
- Workpiece loading
- manual loading
- Phase
- three-phase
- Other characteristics
- automatic, kerf
- Overall length
1,400 mm
(55 in)- Overall width
750 mm
(30 in)- Height
1,650 mm
(65 in)- Weight
450 kg
(992.08 lb)- Power supply
220 V, 380 V, 415 V
Description
• Control system : PLC
• Power : 1500W
• Servo motor accuracy : 0.001mm
• Stroke range : 300mm
• Cutting material : Copper/Aluminum pipe
• Cutting Dia. : ∅0.6mm-∅6mm
• Cutting tolerance : ±0.01mm
• Perpendicularity : ±0.01mm
• Cut surface : no burr
• Exchange die time : 0.3-1min
• Tungsten steel saw blade : ∅160mm×0.5mm×200T
• Kerf width : 0.5mm
