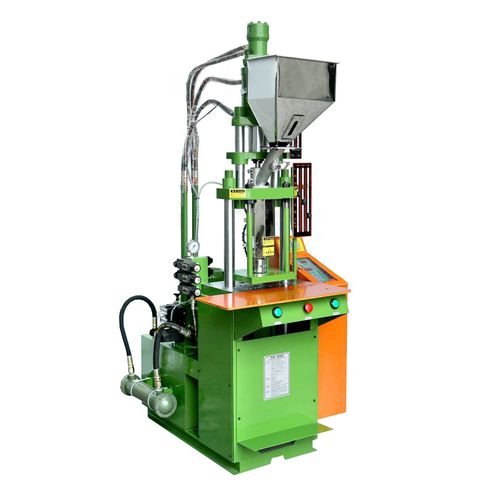

Vertical injection molding machine JWD-IB1-160

electricfor PVCfor PP

Applicable rubber compound: ABS/PVC/PA/PP/PC/POM/PBT fluorocarbon and other heavy engineering plastic injection molding • Injection Speed : 83mm/s • Injection Stroke Rotation : 116mm • Screw Speed(R.P.M) : 0-170 • NO.of Temperature control : 3 • Nozzie Out From Platens(mm) ≥25 CLAMPING UNIT • Clamping Stroke(mm) : 185 • Min.Mold Thickness(mm) : 80/180 • Max.Opening(mm) : 210/260 • Distance Between TieBa (W*L) mm 270 • Max.Mould Size (W*L) mm : 250×200 • Platen Size (W*L) mm : 250×250 • Ejector Distance(mm) : 25 • Ejector Force KN(tf) : 12.7(1.3) OTHER • System Pressure Mpa(kgf/cm²) 13.7(140) • Oil Tank Capacity : 68L • Electric Power : 2.2(3)kw • Heater Power : 2.2kw • Machine Dimensions(m) : W×L: 0.85×1.14 H: 2.05-2.31 • Machine Weight : 600kg
