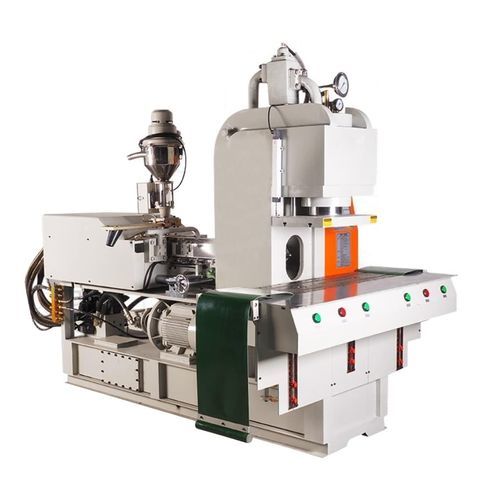

Vertical injection molding machine JWD-IB1-550Celectricfor PVCfor PP
Add to favorites
Compare this product
Characteristics
- Closure
- vertical
- Operation
- electric
- Treated material
- for PVC, for PP, for PC, for ABS, for PA, POM
- Clamping force
539 kN
Description
ABS/PVC/PA/PP/PC/POM/PBT fluorocarbon and other heavy engineering plastic injection molding.
• Injection Speed : 88.3mm/s
• Injection Stroke : 190mm
• Screw Rotation Speed R.P.M 0-180
• No. of Temperature control : 4pcs
• Nozzie Stroke : 190mm
• Nozzie Contact Forece KN(tf) 14.7 (1.5)
CLAMPING UNIT
• Clamping Stroke : 200mm
• Min.Mold Thickness : 175mm
• Max.Opening : 375mm
• Max.Mould Size (W*L) mm 250×500
• Ejector Distance : 100mm
• Ejector Force KN(tf) 14.7(1.5)
