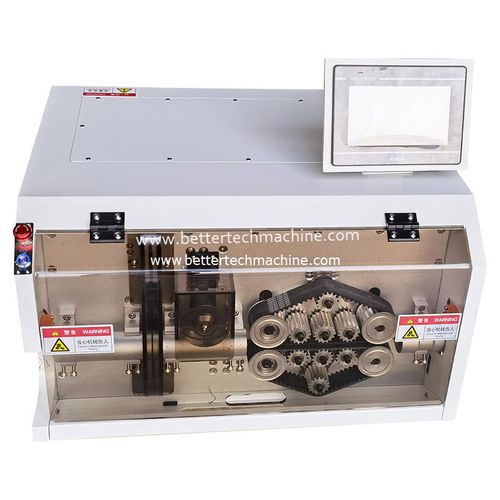

Plastic pipe cutting machine JWD-PA1P535

bladefor PVCfor PVC pipes

The corrugated pipe cutting machine is updated version and it optimized feeding system, cutting structure, and drive mode. it is able to split pipe and cut corrugated pipes at high speed. • The upgraded version of the high-speed bellows cutter has a ball screw control for vertical lifting and lowering, which facilitates higher precision in regulating the pressure on the bellows. • Suitable for the diameter of the corrugated pipes range from 4 to 32mm. • The cutting drive was changed to a servo motor for more efficient cutting. • The cutting structure is optimized and changed to digital adjustment. • Addition of a point-cutting function. • Can be switched off when not needed, no need to adjust the mechanical part. • Optimized feeding system. • Function : Continuously split and cut corrugated pipes at high speed at any position, any length. the cutting speed is adjustable • Application : Split thin pipes such as corrugated pipe /PVC pipe/heat shrink pipe • Dia. Range : 4-32mm • Cutting tolerance : 0.003×cutting length • Cutting length : 1mm-999999.99mm • Max Diameter of conduit : ∅35mm • Display : 7 inch HMI • Drive mode : 10-wheel or servo motor • Feeding method : ribbon feeding • Vertical lift control method : Digital adjustment of pressure wheel height • Split method : Servo motor
