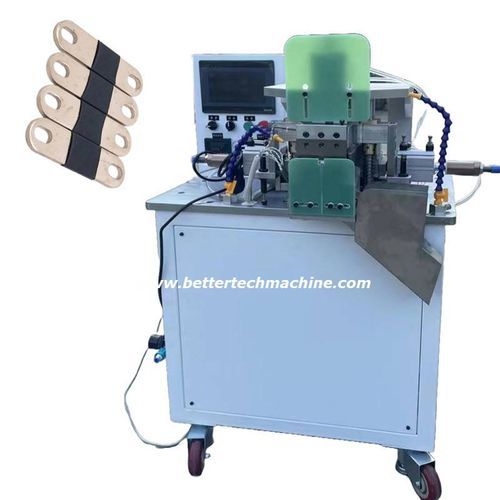

Busbar stripping machine JWD-WSH720

for electrical wirelaserpneumatic

Busbar insulation pneumatic stripping machine is an more economical solution than expensive busbar laser stripping machine. It is suitable for copper busbars with width less than 80mm. Bettertech pneumatic copper busbar stripping machine, the JWD-WSH720 is designed to streamline your operations and elevate your productivity. • Wide Stripping Range: From 5mm to 200mm in length, 10mm to 80mm in width, and 1mm to 8mm in thickness, Bettertech pneumatic busbar insulation stripping machine also can be customized to meet your unique stripping requirements. • Affordable Pneumatic Power: Opt for pneumatic technology, a cost-effective alternative to laser, without compromising on stripping quality. • Operator Safety: With an integrated emergency stop feature and a front-end isolation plate, we prioritize the safety of your operators, providing peace of mind during operation. • Application : Removing the insulation cover of metallic busbar • Driving : Pneumatic • Stripping length : 5MM – 200MM • Copper busbar width range : 10MM – 80MM • Copper busbar thickness range : 1MM – 8MM • Power supply : AC 220V • Dimension : 1100mm×650mm×580mm • Remark : Need Sample test before order
