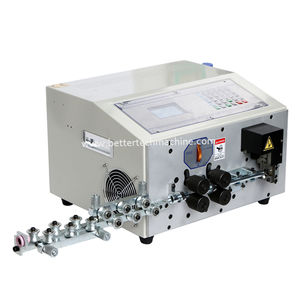

Wire stripping and bending machine JWD-WBC306

cableautomaticelectric

The full automatic electrical wire bending machine JWDWBC306 looks quite small and it is able to bend diameter 0.1-6mm thin wires into different degree. • Compact size and high output • This is a high-performance cable wire cutting stripping and bending machine for processing a wide range of wires and cables. It can bend at 360 degree on the same wire. • Applicable cable wire section area: 0.1 – 6mm². • Smoothly finish cutting stripping and bending steps on one machine. • The machine is mainly suitable for wire jumpers for the electric control cabinet, bending wire for the electric meter box and other wire harness industries. • Output : 800-1500pcs • Store : 200 group data • bend amount : 10 • Conductor Section area : 0.1-6mm² • Bending angle : The same wire can be folded at any Angle • Function : Wire cutting stripping bending • Cutting length : 0.1mm-99,999.9mm • Cutting tolerance : ± (0.002xL)mm • Stripping length : front end stripping ≤50mm; the other end ≤35mm • Drive mode : 2 roll • Power : 350W • Power supply : 175V-250V AC 50/60Hz • Dimension : 430mm×380mm×300mm • Machine Weight : 35kg
