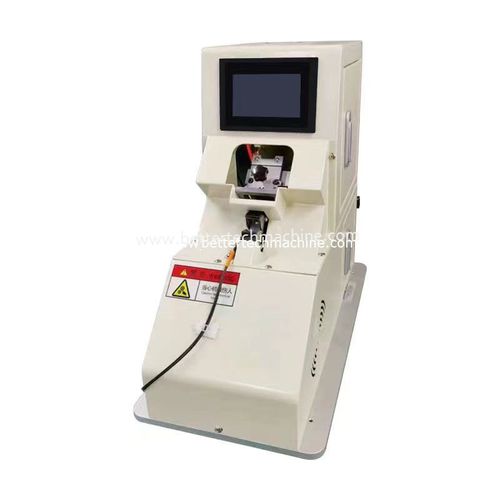

Adhesive tape taping machine JWDTWC109

for cables

This small tape winding machine opens the door to simplifying tape winding and counting. only 18kg weight and can choose paper collector to use together. • This tape winding machine can make automatic cutting and winding come ture. • The length of tape and the number of winding circles can be adjusted. • Function : Automatic cutting and tape wrapping • Capacity : 1200~1800 pcs/h • Line dia. : Dia. 1-10mm or customization • Tape width : 5-15mm • repetition frequency tolerance : 0.5mm • Control system : Full-digital • Power supply : Single-phase/three-phase AC220V • Air source : 6KG • Working environment temperature : 5℃~40℃ • Working environment humidity : 30%~80%RH No-condensing • Warranty : 1 year • Machine dimension : L260mm×W500mm×H475mm • Machine weight : 18kg • Optional : Paper collector
