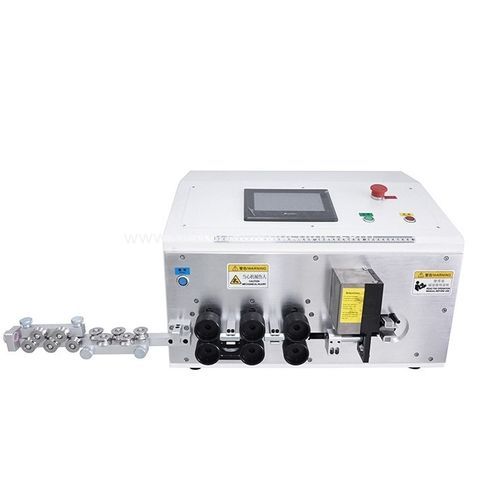

Cable stripping and bending machine JWD-WBC335

wireautomaticelectric

The automatic electrical wire bending machine JWDWBC335 can strip the cable sheath of two ends of the wire and bend it to the angle in your design drawing. This machine is able to finish cutting, stripping and bending steps on wires (max. wire section area 35mm² ). • This is a high-performance cable wire cutting stripping and bending machine for processing a wide range of wires and cables, it has an affordable price and perfect working performance. it can bend angle 30°, 45°, 60°, 90° and more. • Applicable cable wire section area: 1-35mm². • Smoothly finish cutting stripping and bending steps on one machine. • The machine is mainly suitable for wire harness processing of electronics, new energy cable, electrical appliances, toys, automobile fittings, and other industries. • Output : Max 2000pcs/h(L=100mm) • Conductor Section area : 1-35 mm² • Conduit diameter : Standard machine ⌀ 10mm, Other conduit diameters can make customization • Function : Wire cutting stripping bending • Cutting length : 1-100,000mm • Cutting tolerance : ± (0.001xL)mm • Stripping length : 0.1-100mm • Bending angle : 30°, 45°, 60°, 90° bend clockwise and bend counterclockwise • Power : 600W • Power supply : 110/220V AC 50/60Hz • Dimension : 950mm×880mm×820mm • Machine Weight : 88kg
