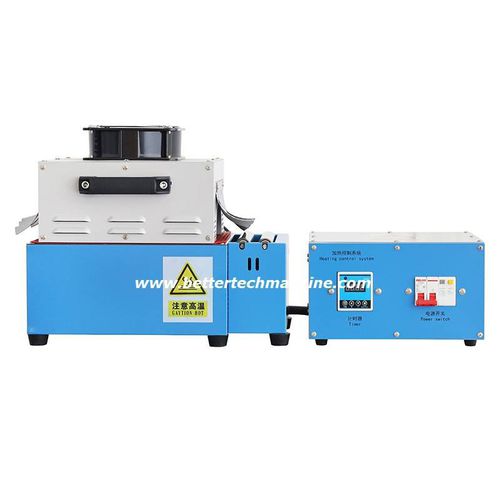

Curing oven JWDD9180

tunnelhardeninginfrared

The curing oven for heat shrink tube is widely applied for wire harness industries. 2000 Watts bring big heating effiency to the oven, This oven is ideal for heat shrink tubes with the diameter less than 25mm. • The curing oven for heat shink tube consists of a heating system and a control system. double oven shell of the heating system isolates the high temperature inside and effectively reduces the temperature on the surface of the outer shell. • Heating system can be induction heating or circulation heating. • The small curing oven machine equipped with electric air heater and semi-enclosed ring infrared radiation to make the heat shrink tube heated evenly. • Suitable for long wire harness, terminal wire harness and other heat shrink tubing heating. • Application : Curing heat shrink tube • Heating length : <130mm • Safety level : Ground electrode • Heating tube diameter : <25mm • Heating tube : Infrared radiant tube • Heating tube power : 2000W • Power supply : AC220V±10% 50/60Hz • Machine power : 2300w • Machine weight : 16.5kg
