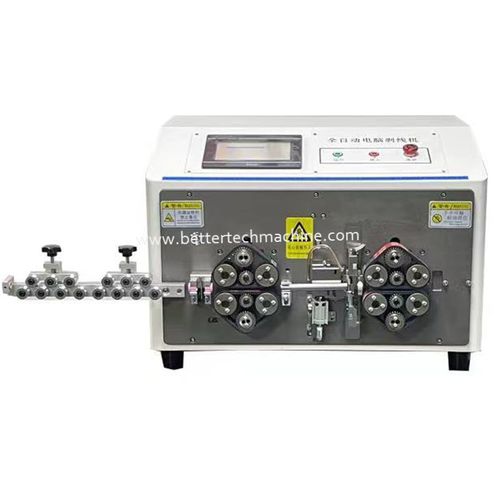

Cable cutting and stripping machine JWDWSA8-508

bladeautomatic

This full automatic battery cable wire cutting stripping machine is able to finish full stripping half stripping on 1 – 35mm² lamp cables, power cord, flat power cord and SUB data cables. • The battery cable cutting stripping machine’s cutter frame is equipped with servo motor, screw and slide rails to make the cutting more exact. • The JWDWSA8-508 is suitable for the processing and production of Outer diameter 1MM-12MM sheath cable, lamp cables, power cord, flat power cord and SUB data cable. • JWDWSA8-508 can store 99 groups of data. It can call data conveniently, which effectively improves production efficiency. • Wire types : Battery cable, multicore sheath cable, rubber cable • Wire OD : Ф1MM—Ф12MM • Output : 400 – 1000 pcs/h • Display : 7”LCD • Blade material : High speed steel • Cutting length : 1mm-99999mm • Cutting tolerance : 0.02×Cutting Length • Conduit Dia. : Ф4MM—Ф12MM • Stripping length : Front end strip length 0 – 300MM, Tail end strip length 0 – 100MM • Store : 99 group data • Driving mode : 16 wheel/ Belt conveyor ceble/ Servo motor/ Stepping motor • Wheel lift mode : Lift wheel by motor, touch screen CNC control pressure • Blade motor tolerance : Silent hybrid stepper motor 0.1mm per step • Cable pressure adjusting method : Electrically adjust • Optional : Automatic cable feed, automatic cable out, timer Engine Start • Power supply : AC 175V-250V 50Hz/60Hz • Power : 500W – 1100W • Dimension : L680MM×W560MM×H480MM • Weight : 90kg
