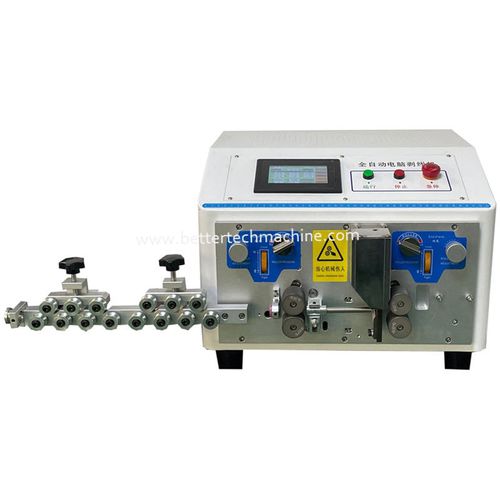

Wire cutting and stripping machine JWDWSA8-502

bladeautomaticelectric

This full automatic cable wire cutting stripping machine is able to finish full stripping half stripping on 0.1- 16 mm² thick cable. It is electric driving and widely applied in charge cable industry, new energy cord industry and others. • The fully automatic wire cutting stripping machine is equipped with an intelligent control system, and the wire stripping machine control system uses a liquid crystal display, touch screen to operate and control the machine. • JWDWSA8-502 can store 99 pieces of information. It can call data conveniently, which effectively improves production efficiency. • Suitable for electronic wires, PVC, braided wires, silicone cables, high temperature wires, Teflon wires, isolation wires, processing, cutting, and peeling. • Optional:Automatic shutdown without line, Automatic feeding, Timer Engine Start. • Wire types : PVC Cable, Teflon cable, battery cable and other electric cable • Display : 4.3”LCD • Cutting cable dia. : 0.1-16 SQMM • Conduit dia. : Ф1.5MM—Ф9MM • Blade material : High speed steel/tungsten steel • Blade electric motor per step accuracy : 0.03MM • Cutting length : 0.1MM-99999MM • Middle strip amount : 13(or customization) • Cutting tolerance : 0.002×L • Pulse equivalent tolerance : 0.05MM • Function : Cutting and stripping • Stripping length : Front end strip length 0.1-30mm, Tail end strip length 0.1-30mm • Output : 1000-3000 pcs/h (depend on the cable) • Feed motor tolerance : Silent hybrid stepper motor 0.1mm per step • Drive mode : 4 wheel • Cable pressure adjusting method : Manual roller skating adjustment • Optional : Automatic stop When the lack of line, automatic cable out, automatic cable in, timing start
