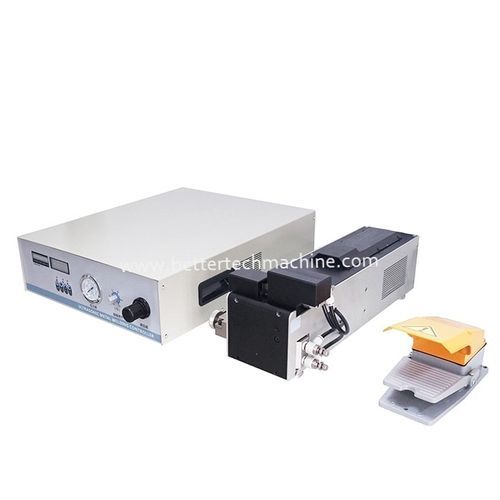

Ultrasonic welding machine JWD-WB32020

automaticbenchtopfor wire

Wire welding machine JWD-WB32020 uses ultrasonic welding technology to weld metal conductor wires together, the welding area is no more than 16sqmm • Wire welding machine can set time and power for stable ultrasonic welding. The full vibration range is 0-100% adjustable, and provides constant power to ensure the quality of finished products after welding. The maximum weldable area of JWD-WB32020 is 16sqmm. • Over-temperature protection. • Over-current protection. • Overload protection. • RS485 port for connecting to an external PC. • Extended process control limits with memory for real-time automatic frequency adjustment. • Wire welding machine can be through the machine self-diagnosis and display, sound alarm and logic electrical signal output (used to control other automatic equipment), so as to directly display the fault location information, easy to troubleshoot. • Electricity max. : 15A • Welding area max. : 16sqmm • Power supply : 220V 50/60Hz • Air pressure : 6.5bar（94 psi） • Control system : Single Chip Micyoco • Electrical box dimension : 500mm×400mm×120mm • Rack dimension : 340mm×180mm×242mm
