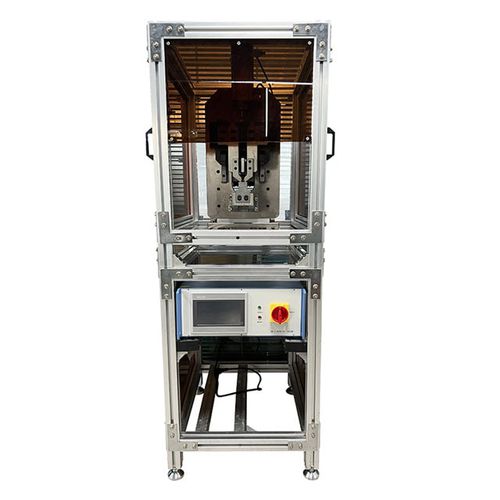

Ultrasonic welding machine JWD-WB32055

automaticstandalonefor copper

Copper wire terminal welding machine JWD-WB32055 uses ultrasonic welding technology to weld metal conductor wires and terminal connectors together, the welding area is no more than 50sqmm. • Pure copper wire and terminal welding machine can set time and power for stable ultrasonic welding. The full vibration range is 0-100% adjustable, and provides constant power to ensure the quality of finished products after welding. The maximum weldable area of JWD-WB32055 is 50 sqmm. • Over-temperature protection. • Over-current protection. • Overload protection. • RS485 port for connecting to an external PC. • Welding material : Pure red copper • Welding area max. : 35 ~ 50 sqmm • Welding speed : 2S/pcs • Welding tolerance : 0.1-0.3mm • Power supply : 380V • Air pressure : 0.8Mpa • Control system : Single Chip Micyoco • Electrical box dimension : 550mm×450mm×180mm • Rack dimension : 570mm×280mm×320mm • Weight : approx. 75kg
