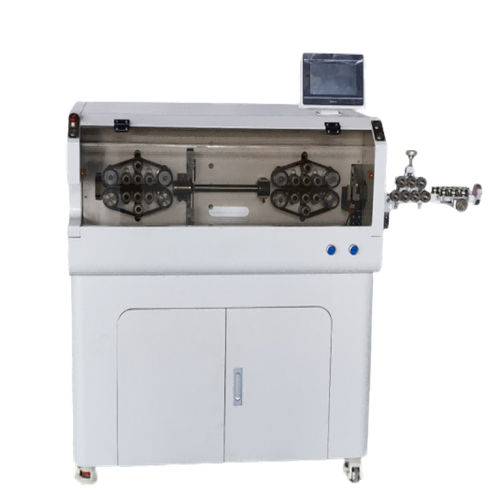

Cable stripping machine JWD-WSA1-H612wireelectricautomatic
Add to favorites
Compare this product
Characteristics
- Product to be stripped
- cable, wire
- Other characteristics
- electric, automatic
- Diameter
28 mm
(1.1 in)
Description
RVVP Cable Stripping Machine Strip Cable Jacket & Conductor Insulation
• Max stripping area : 6-120mm²
• Function : Cutting and Stripping Cable Jacket & Conductor Insulation
• Efficiency : 1000-2000pcs/h
• Tolerance : 0.002×cutting length
• Stripping length : Full stripping length 20-200mm; striped wire length 1-50mm
• Full stripping length 20-150mm; striped wire length 1-50mm
• Optional : Table / robotic arm/ drive motor/ feeding rack
• Test sample before order : Support
• Drive mode : 32 wheel drive
• Power supply : 220V/110V 50/60Hz
• Air pressure : 0.5-0.8Mpa
• Dimension : 1700mm×720mm×1460mm
• Machine weight : 250kg
