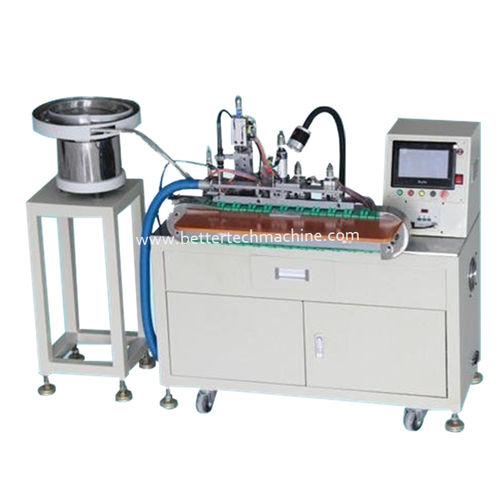

Automatic soldering machine JWD-SG8U

gascompacttable

Automatic USB Connector Soldering Machine Connector soldering machine JWD-SG8U is widely applied in usb production lines, it can solder power wires to your different usb connectors. • Compared with manual welding, the automatic soldering machine welds the finished product better, and the solder joints are full. • There are 4 welding spots between USB A and wire (A end) • A total of 4 welding spots between 5pin micro USB and wire (tail end) • 4 welding spots between 5pin mini USB and wire (tail end) • Compact equipment structure • Welding positioning has the characteristics of fast speed and high precision • High power welding table, fast return temperature • High temperature control precision, stable welding effect • Capacity : 900 ~ 1200pcs/h • Wire Types : 28*1P+28*2C，28*1P+24*2C，28*1P+26*2C，28*1P+22*2C，28*1P+20*2C • Wire stripping length : 0~20mm • Driving mode : pneumatic • Power supply : 220V AC 50Hz, 10A • Gas pressure : 0.5Mpa • Machine dimension : 1500*600*1300mm • Weight : 200kg
