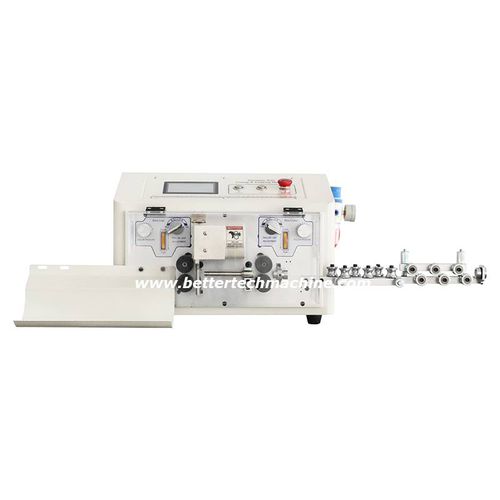

Cable cutting and stripping machine JWD-WSD4HT2

bladeelectric

Outstanding solution for processing sheath cables in bulk, use our advanced wire cutting and stripping machine, suitable for multi-core sheathed cables with an outer diameter of less than 10mm. This machine will not damage the outer insulation of the core wire nor cause any adhesive issues with the sheath. It is suitable for batch processing of wire harnesses. According to your project requirements, the machine can handle both single-end and double-end processing. • Available cable: 1~ 10mm one core wire, multicore cable, sheathed cable. • Capacity:2000-3000pcs/h depending on cutting length=200MM • Stripping length: Front: half stripping 0-150mm End: half stripping 1 – 100mm • Feeding unit: 4 wheel drive • Optional: protection cover • Support machine customization • Application : Round sheath cable(cable sheath made from PVC, teflon, fiberglass ) • Cable Max. OD. : 10mm • Max Conduit Dia. : ∅11mm • Capacity : 2000-3000pcs/h depending on cutting length=200MM • Cutting Tolerance : ±0.002×cutting length • Blade Material : Tungsten steel • Cutting Speed : Adjustable • Stripping Length : Front: half stripping 0-150mm End: half stripping 1 – 100mm • Drive Method : 4 wheel drive • Power : 450W • Power Supply : AC 220V/110V 50/60Hz • Dimension : 460mm×470mm×325mm • Weight : 30kg
