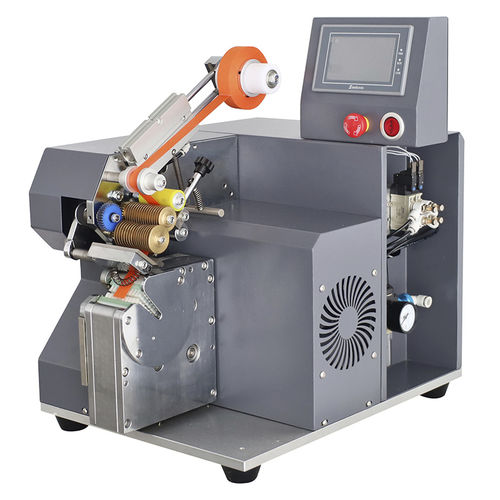

Pipe spot taping machine JWD-TW305

wire harness

Tape spot winding machines are widely used to wrap tape on wire harnesses or pipes to achieve fixing, marking or insulation wrapping. Feature ▪This tape spot winding equipment is suitable for winding different tapes onto electric harness, cable bundle, tubes. It highly improves the efficiency, save labour and cost. ▪It can cut tape and wind the tapes around the harness. Users can set tape length and winding turns as your project needs. ▪Applicable tape width: 15 – 45mm If your tape width is out of the range of JWD-TW305, we can make customization taping machine for your specific requirements. Parameter Model - JWD-TW305 Brand - Bettertech Winding speed - 0-600mm per second Tape width - 15 – 45mm Wire diameter - 3 – 40mm Power - 600W Power supply - 220V Dimension - L500mm×W360mm×H360mm Weight - 44kg
