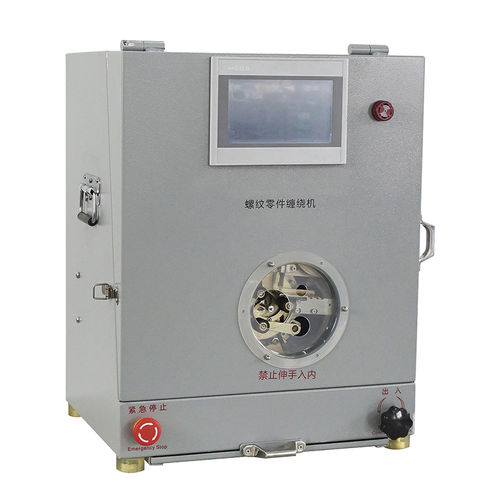

Thread seal tape spot taping machine JWD-D5TW9

for pipe

Teflon/PTFE thread tape wrapping machine is ideal for wrapping sealing tapes on pipe threads fittings, compression joints, radiator valves, and taps. Model: JWD-D5TW9 Feature The Automatic teflon taping machine wrapping parts are strong, uniform, regular and reliable, not fall off, eliminating all leaks, ensure safety. Quite easy to operate: Put the fittings into the work area the machine would wrap the PTFE tapes around it. The number of cycles can be set freely. Suitable for all kinds of threaded fittings, pipes , gas tank, valve, flange, faucets those are applied in fire protection, fluid control, gas pipe, water filtration, medical equipment, hydraulic, pneumatic, pressure gauge. Parameter Model - JWDD5TW9 Function - Threads teflon(PTFE) tape wrapping on threads fittings Workable PTFE tape width - 5~ 14mm (min.3mm, max.16mm customizable) Drive - IS620PS5R5I/SMH1-75B30CB-U231Z servo driver and servo motor Workable threads - 1/8-2 inches (2.5 inches can be customized) Winding efficiency - 3-5 seconds/pcs (wrap 2-3 circles) Control system - Full-digital Power supply - 220V/110V AC 50/60Hz Air pressure - 0.45-0.6Mpa Machine dimension - L720mm×W520mm×H520mm Machine weight - 78kg
