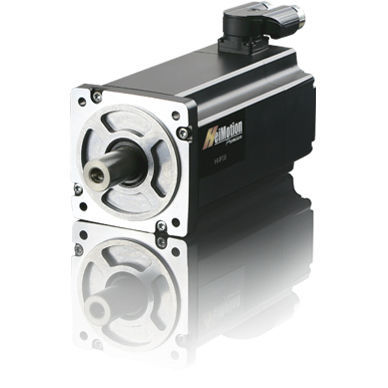

DC servomotor HMP08 series

brushlesswith brakecompact

The HeiMotion Premium series is our compressed power package. The DC servo motors meet the high demands of the European market, for example by approvals such as UL/CSA and are available in seven different flange sizes (40 mm, 60 mm, 80 mm, 100 mm, 130 mm) with varying overall lengths and different torque steps. Our experienced design and development department has developed a special winding technology for this purpose, with which even more compact sizes and low as well as very high speeds with low iron losses can be achieved. Thanks to our innovative modular system, there are also many different choices of encoders, planetary gears, cable connections and many other options. The most important data of the HMP series: - Stall torque: 0.18 - 18.5 Nm - Rated speed: 2,000, 3,000, 3,600, 5,000, 5,500, 6,000, 9,000 rpm - Rated torque: 0.12 - 14.4 Nm The features of the HMP series: • Highest synchronism and accuracy • Manifoldly configurable and customizable • High efficiency • Optimized moments of inertia • Long service life • Compact design • High power density and overload capacity • Low cogging torque • Energy efficiency Available in 2 different basic versions Flange size: : 80 x 80 mm DC bus voltage: : 320 / 560 V Feedback options: : Resolver (standard), CKS36 (incremental encoder), ECI 1118 (EnDat 2.2), EQI 1131 (EnDat 2.2), SEK/SEL37 (HIPERFACE), SKS/SKM36 (HIPERFACE), SRS/SRM50 (HIPERFACE), EES/EEM37 (HIPERFACE DSL), EKS/EKM36 (HIPERFACE DSL), EFS/EFM50 (HIPERFACE DSL), HES/HEM (hall encoder) Optional: : brake / feather key / radial shaft seal
