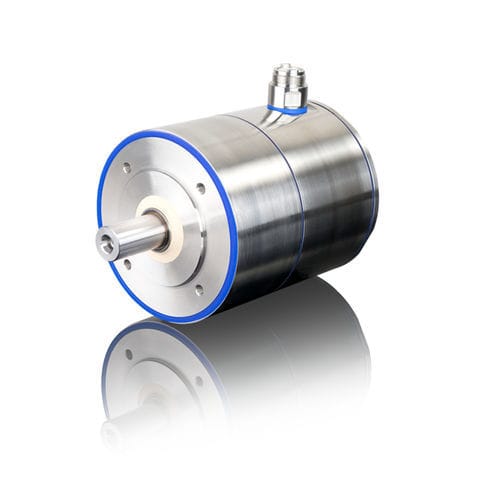

Stainless steel servomotor HMS10 series

DCIP69Kmaintenance-free

The stainless steel motor series is our hygienic performance package. The stainless steel servo motors are specially designed for production environments with high demands on hygiene, corrosion protection and cleanliness, which are particularly required in the food and beverage industry. Thanks to the smooth surface and the intelligent sealing concept, they are also excellently suited for the chemical or pharmaceutical industry and for areas requiring special cleaning or disinfection. They are available with stainless steel plug in various flange sizes (68 mm, 88 mm, 108 mm and 138 mm) and designs. In addition, they can also be equipped with planetary gears and integrated electronics. The most important data of the stainless steel series: - Stall torque: 0.7 - 14 Nm - Rated speed: 2,000 - 3,000 min-1 - Rated torque: 0.7 - 11.7 Nm The features of the stainless steel series: • Especially for demands on cleanliness, hygiene and corrosion protection • Intelligent sealing concept • Stainless steel • Surface design developed in accordance with EHEDG and FDA • FDA-compliant shaft seal and sealings • Maintenance-free • Compact design • Peak torque up to 61.3 Nm • Protection class IP69 and IP69k • Stainless steel plug • Versions with brake available • Optionally as decentralised servo motor with integrated servo controller • Lasered nameplate • Configurable and customisable Your advantages: • Easy cleaning, thanks to the dead space-free hygienic design with smooth stainless steel surface material, • even under high-pressure cleaning or high temperatures • Robust, thanks to resistance to corrosive cleaning agents • Space-saving, compact unit.
