Four-quadrant servo-drive HCB seriesACdigitalRS-232
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- four-quadrant
- Output signal
- digital, RS-232, RS-485, EtherCAT, CANopen, Ethernet, ProfiNet
- Product applications
- for synchronous motor, for asynchronous motors
- Voltage
- 400 V, 230 V
- Other characteristics
- compact, with integrated PLC
- Intensity
2 A, 4 A, 8 A, 12 A
- Output power
Max.: 4,800 W
(6.52618 hp)Min.: 400 W
(0.54385 hp)
Description

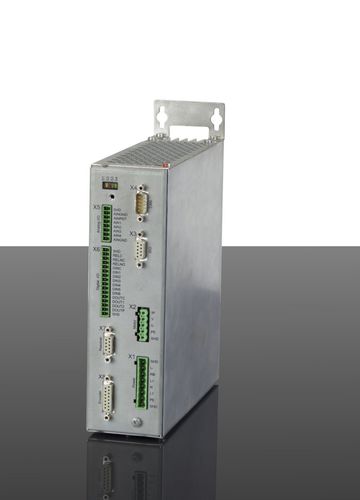

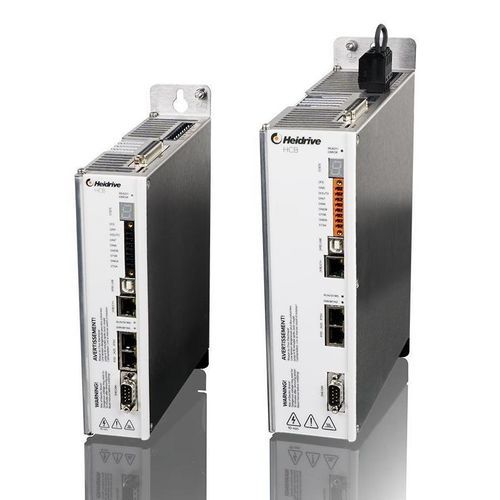

The compact single-axis Servo drives of the HCB series are true all-rounders in drive technology. They combine maximum power density with extensive motion control functions.
The HCB series consists of two sizes, which are divided into two power stages for the 1-phase units and two power stages for the 3-phase units.
All proven fieldbus interfaces are „on board“ - from CANopen to EtherCAT to PROFINET, which promise problem-free communication.
Available in 2 different sizes
Compatible motors: - HMP04, HMP06, HMP08, HMP10, HMP13, HMD06, HMD08 (differences depending on version)
Switch frequency: - 8 / 16 kHz
DC bus voltage: - 325 / 565 VDC
Approval: - CE, UL, CSA
